Inline Fans

Inline Fans Manufacturers

Compact Airflow Solutions for HVAC and Ventilation

Inline Fans are designed to move air through ducted ventilation systems where efficient airflow and compact installation are critical. They are generally used in HVAC systems, industrial buildings, industrial spaces, and other applications that require controlled air movement through ducts.

For businesses looking for Inline Fans Manufacturers in India, fan selection should consider airflow, static pressure, duct size, operating conditions, and available installation area. A well selected inline fan can help maintain consistent airflow while fitting into the existing duct design.

Contact Us
Circular Inline Fans Manufacturers

Circular Inline Fans

Designed for installation directly into ductwork, our circular inline fans provide efficient airflow in a compact package. With durable construction and easy installation, our fans ensure reliable operation and optimal airflow distribution in ventilation systems and exhaust applications.

Impeller
Backward curved impeller to achieve higher efficiency & lower noise level. Integration of impeller with external rotor motor is kept in mind while designing the fans.
Applications
Toilet, hotel, auditorium, station, supermarket, airport and other public occasions.
Aspects
Bulk, weight, vibration, noise, durability, efficiency and safety

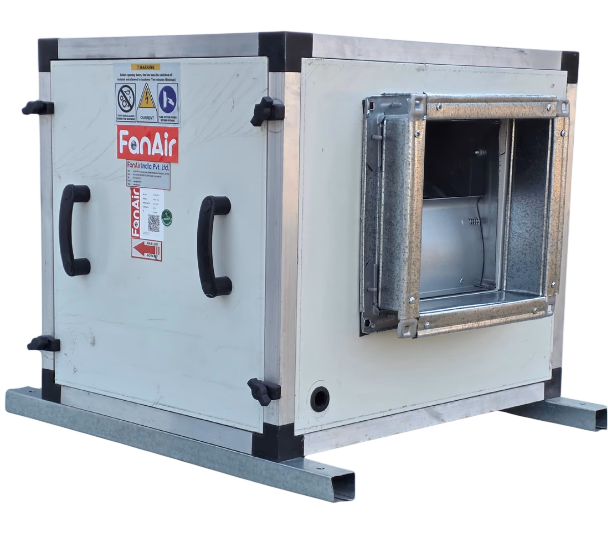

Cabinet Inline Fans Manufacturers
Cabinet Inline Fan

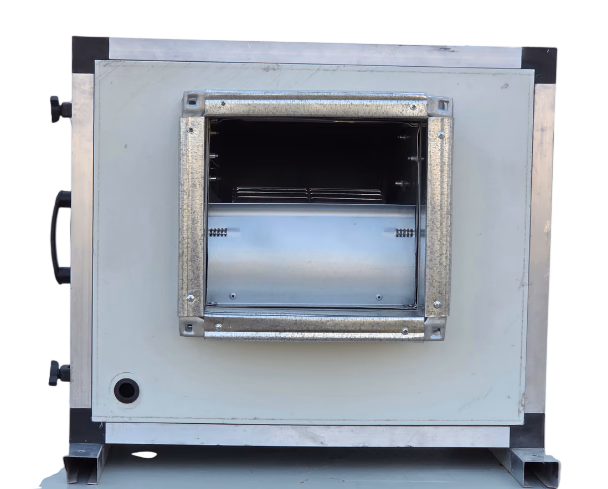

Modular Cabinet

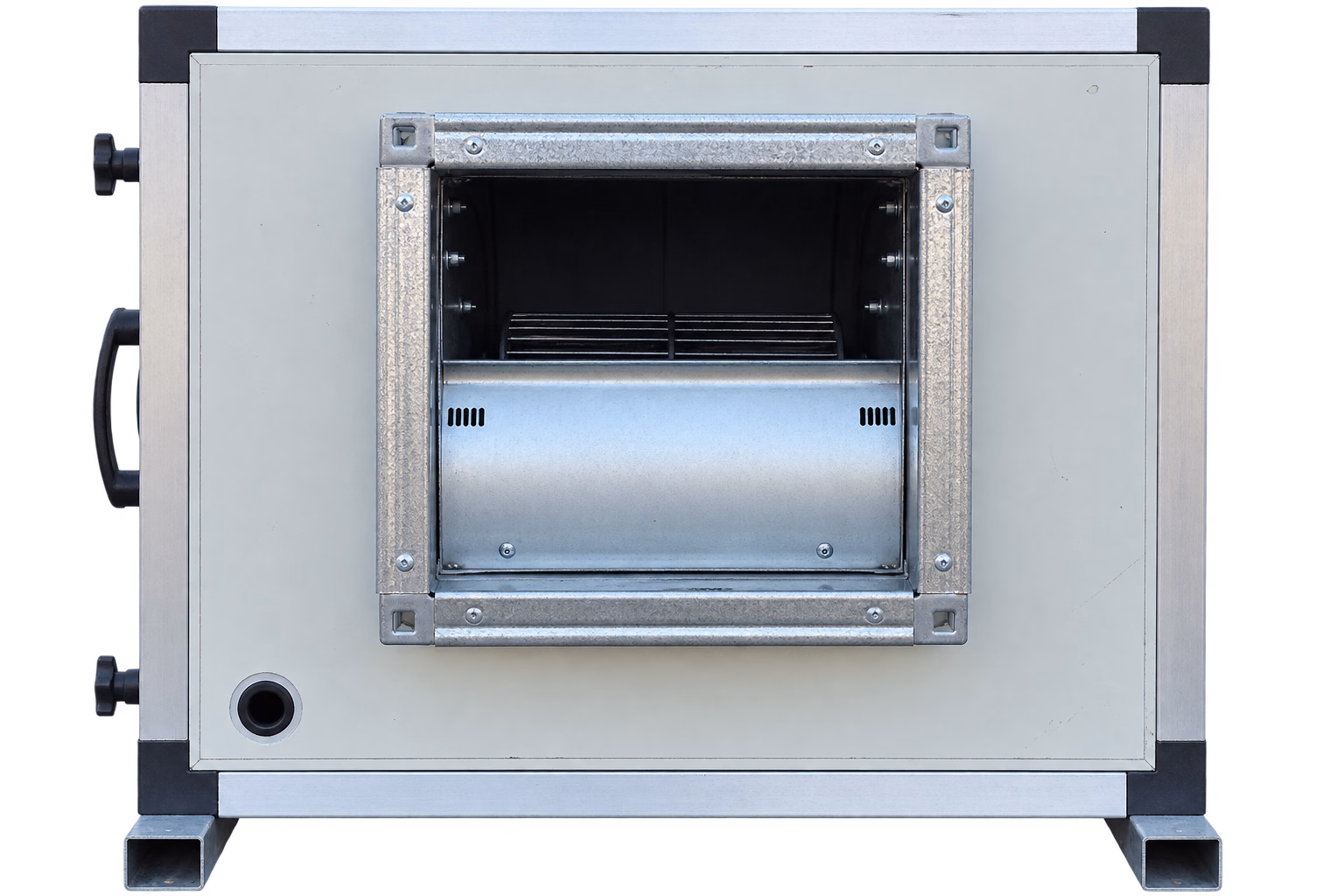

Low-Profile Acoustic
Cabinet Inline Fans

Featuring enclosed double-skin acoustic housing for protection against dust, noise, and moisture, our cabinet inline fans are suitable for demanding environments such as industrial facilities, corporate offices, and cleanrooms. With high-performance forward-curved motors and advanced airflow design, our fans deliver superior air quality and reliability.

Impeller
Forward curved impeller to achieve higher efficiency & lower noise level. Integration of impeller with external rotor motor is kept in mind while designing the fans.
Applications
Toilet, hotel, auditorium, station, supermarket, airport and other public occasions.
Aspects
Bulk, weight, vibration, noise, durability, efficiency and safety

How Inline Fans Work

Airflow Through Duct Systems

An inline fan is installed directly within a duct or connected air path. As the impeller rotates, it draws air from one side and pushes it towards the outlet, helping maintain airflow through the connected ductwork.

This arrangement can be useful when the ventilation system has limited space for conventional fan installations. The fan type, size, motor, and configuration must be selected according to the required operating point.

Key Features of Inline Fans

Compact Installation

One of the main benefits of Inline Ventilation Fans is their ability to fit inside ducted air systems. Their arrangement can simplify installation where available floor or equipment space is limited.

Depending on the application, inline fans may be configured with different motor arrangements, mounting options, materials, and airflow capacities. These features enable them to be considered for a variety of ventilation requirements.

Technical Specifications

Inline fan specifications depend on the chosen configuration and the requirements of the connected ventilation system. Important factors include airflow, static pressure, fan dimensions, motor power, velocity, duct size, and operating temperature.

Fan TypeInline Fan
ApplicationHVAC & Ventilation
AirflowApplication-specific
Static PressureApplication-specific
MotorAs per requirement
Drive ArrangementAs per configuration
InstallationWithin / Connected to Ductwork
ConstructionProject-specific

Final specifications must be confirmed according to the selected model and application requirements.

Applications of Inline Fans

Commercial Ventilation

Commercial Inline Fans can be used in offices, retail spaces, restaurants, institutional buildings, and other commercial environments where ducted ventilation is required.

They can help circulate fresh or exhaust air through connected ductwork. Fan selection should be based on the specified airflow, pressure loss, duct design, and operating conditions.

Industrial Ventilation

Industrial Inline Fans can support air movement in workshops, production areas, process areas, and other industrial environments. They can be used for general ventilation, exhaust applications, and controlled air movement.

The fan configuration should be selected according to the air characteristics, temperature, operating hours, and environmental conditions of the installation location.

Why Proper Inline Fan selection Matters

Choosing an Inline Fans Manufacturer includes more than evaluating airflow ratings. Static pressure, duct resistance, installation position, motor requirements, noise, and operating conditions can all affect the fan's performance.

For businesses looking for Inline Fans Manufacturers in India, it is useful to consider the whole ventilation system before selecting equipment. A fan should be matched to the actual operating point rather than selected only by its free-air capacity.

Engineering and Manufacturing Process

Requirement Analysis

The method starts with understanding the required airflow, static pressure, duct dimensions, operating environment, and installation conditions. These details help determine a suitable fan configuration.

Fabrication and Testing

After the design is finalized, the fan components are fabricated and assembled according to the specified configuration. Balancing and relevant performance tests can help support smooth operation before dispatch.

Customized Inline Fan Solutions

Every ventilation project can have different space and performance requirements. Inline fans can therefore be configured according to airflow, pressure, duct size, motor requirements, mounting arrangement, and operating environment.

For projects requiring Customized Inline Fans, complete technical details can help determine the proper configuration. Installation space and maintenance access should also be considered throughout the design stage.

How to Select the Right Inline Fan

Check Airflow and Static Pressure

Begin by identifying the required airflow and static pressure. Duct length, bends, filters, grilles, dampers, and other components can create resistance that the fan needs to overcome.

Consider Installation Conditions

Available space, duct diameter, temperature, noise requirements, operating hours, and maintenance access must also be reviewed before selecting the fan.

Frequently Asked Questions

What are Inline Fans used for?

They are usually used in ducted HVAC and ventilation systems to move fresh, exhaust, or recirculated air.

How do Inline Fans work?

An inline fan is installed within or connected to ductwork. Its rotating impeller moves air from the inlet towards the outlet through the ventilation system.

Where can Inline Fans be installed?

They can be used in commercial buildings, industrial facilities, offices, restaurants, workshops, and other locations with ducted ventilation systems.

Can Inline Fans be customized?

Yes. Fan size, airflow, pressure, motor, construction, mounting arrangement, and other requirements may be considered according to the project.

Learn More

Conclusion

Selecting suitable Inline Fans Manufacturers in India requires attention to airflow, static pressure, duct resistance, installation space, motor requirements, and operating conditions. A properly selected fan can support consistent air movement through a ducted ventilation system.

For project consultation and technical requirements, FanAir India Pvt. Ltd. can discuss your application and help identify a suitable inline fan configuration for your ventilation project.
