Axial Fans

Axial Fan Industrial Product
Aerofoil Impeller
Heavy Duty Casing
Axial Fan Manufacturer
Axial Fan View 1

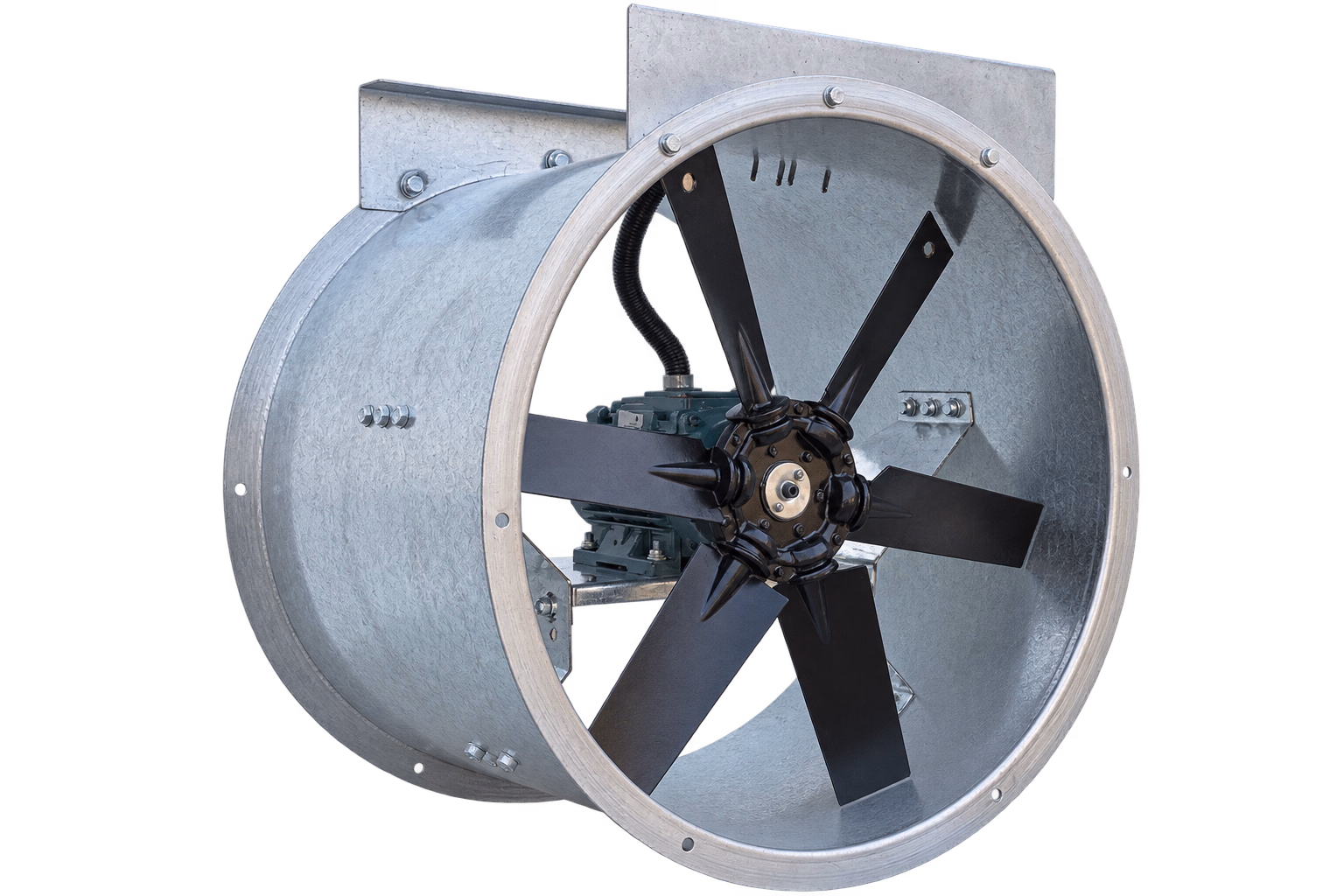

Axial Fan View 2

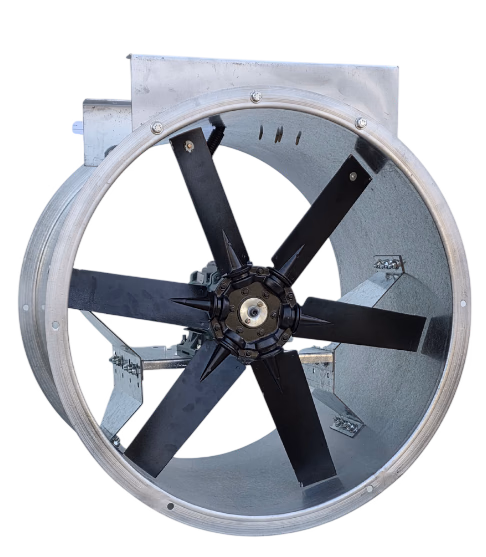

Axial Fan View 3

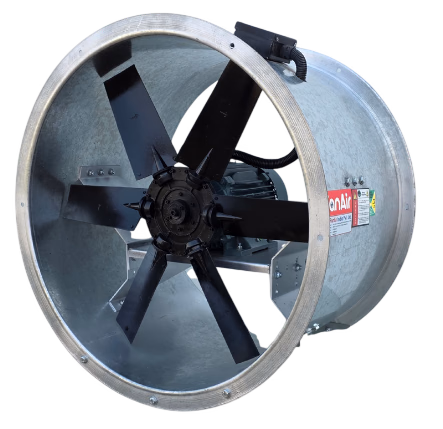

Axial Fan View 4
Impeller Dia
315 mm to 1600 mm
Air Flow Range
1,000 to 180,000 CFM
Static Pressure
Up to 100 mm WG
Temperature Rating
300°C / 400°C for 2 Hours Fire Rated

High-Volume Airflow for Ventilation and Cooling

Axial Fans are designed to move air parallel to the fan shaft, making them suitable for applications that require high airflow and effective ventilation. They are widely used in commercial, industrial, and emergency ventilation systems in which large volumes of air need to be moved efficiently.

These fans can be used for general ventilation, fume exhaust, cooling, smoke extraction, and different air-handling requirements. Fan selection depends on airflow, static pressure, temperature, installation conditions, and the operating requirements of the connected system.

Contact Us
Tube Axial Fan Manufacturer
Tube Axial Fan
Aerofoil Impeller

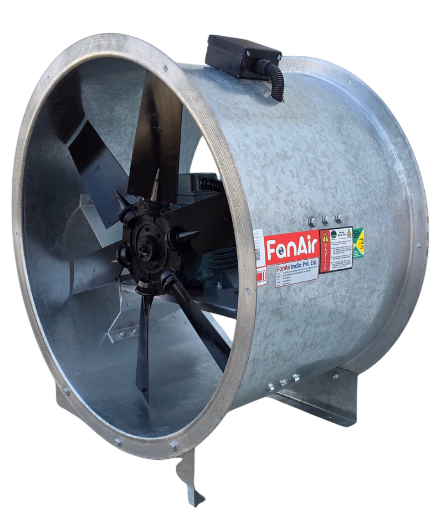

Flanged Housing

Tube Axial Fans Manufacturer

Our tube axial fans move air parallel to the fan's axis, making them suitable for applications requiring airflow over long distances. With precision engineering and durable cylindrical construction, our fans ensure efficient airflow distribution and optimal performance in ventilation ducts, tunnels, and industrial environments.

Manufacture
Aluminium alloy impeller having fixed & variable pitch in v-belt / direct driven configuration.
Range
315mm to 1600 mm Dia
Air Flow
Up to 130,000 CFM
Casing Material
Heavy Gauge Hot Dip Galvanized Steel / SS304

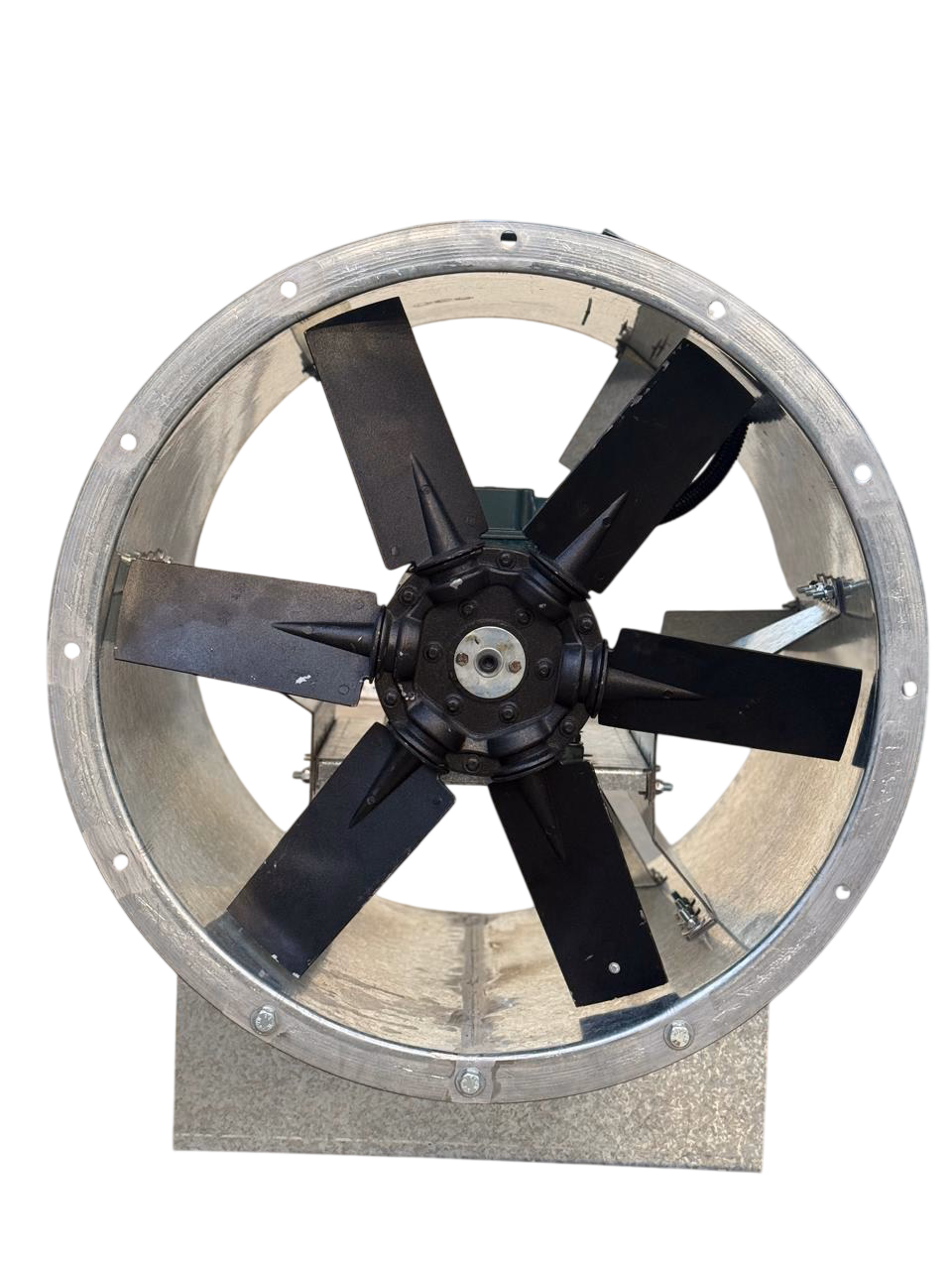

Vane Axial Fan Manufacturer
Vane Axial Fan

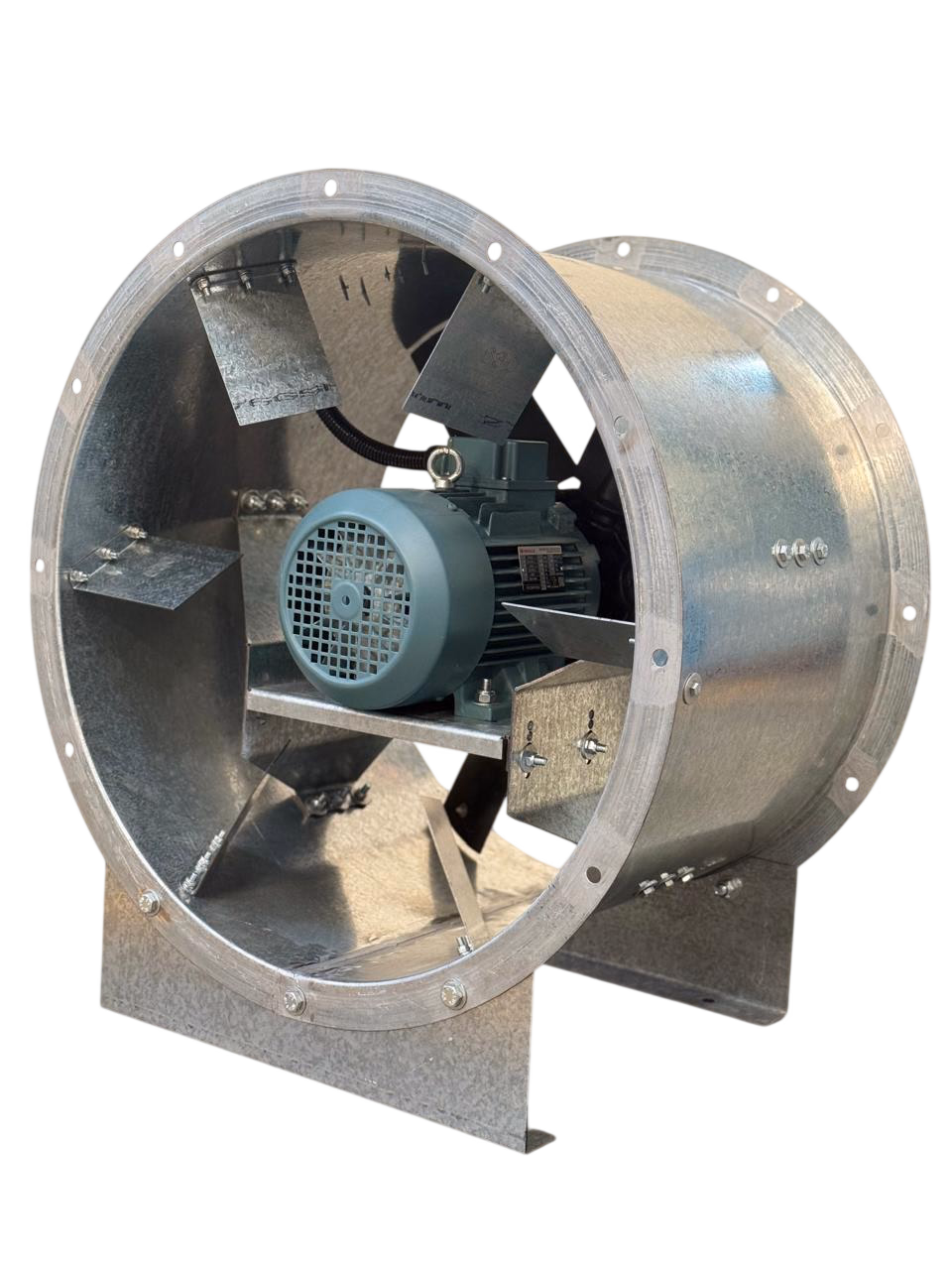

Guide Vane Unit

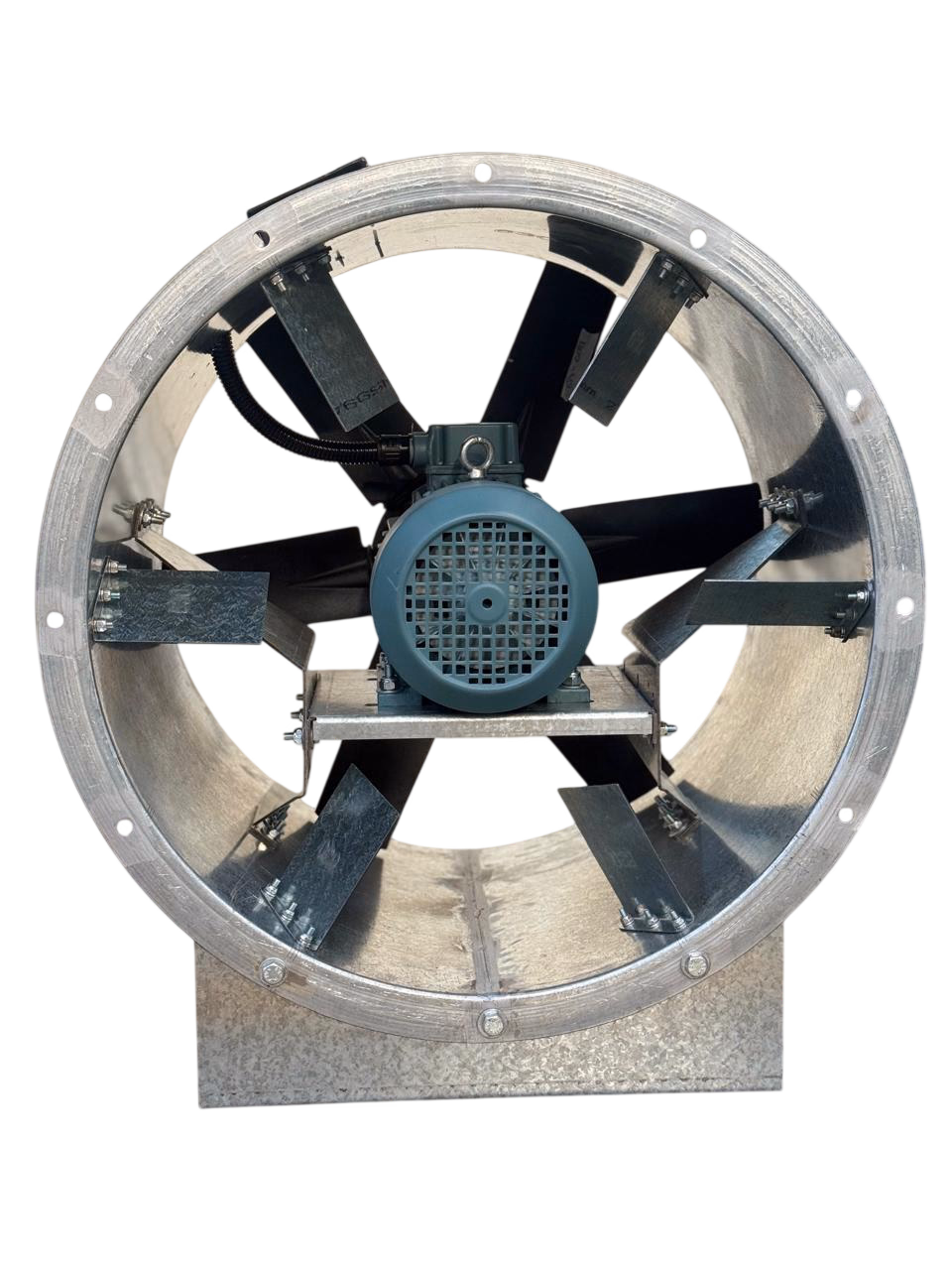

Precision Hub
Vane Axial Fans Manufacturer

Featuring integrated downstream guide vanes that convert rotational swirl into useful static pressure, our vane axial fans deliver increased aerodynamic efficiency and energy savings. Available in various sizes and high-pressure configurations for cooling towers, heat exchangers, and commercial HVAC plants.

Guide Vanes
Aerodynamically shaped stationary guide vanes for swirl recovery
Efficiency
High total efficiency up to 88%
Motor Rating
IP55 / IP65, Class H, Fire Rated 300°C / 2 Hrs

Types of Axial Fans

Tube Axial Fans

Tube Axial Fans are designed to move air through a cylindrical casing, with airflow travelling parallel to the fan axis. They may be used for ventilation ducts, tunnels, industrial exhaust systems, and applications where air needs to travel through a defined path.

Vane Axial Fans

Vane Axial Fans include guide vanes that help control airflow and recover rotational energy after the impeller. They are suitable for applications such as cooling towers, air-cooled heat exchangers, industrial exhaust systems, and commercial HVAC installations.

Key Features of Axial Fans

The design of these fans supports high airflow with a relatively compact arrangement. Adjustable-pitch impellers can provide flexibility for different performance requirements, while appropriate materials and configurations may be selected according to the application.

Important features can include aluminium alloy impellers, fixed or variable pitch blades, direct-drive or V-belt configurations, dynamic balancing, and robust casings. Options such as guide vanes and inlet bells also can support airflow performance.

Technical Specifications

The current FanAir product lists impeller diameters from 315 mm to 1600 mm and airflow capacity up to 180,000 CFM. The product page also lists static pressure up to 100 mm WG and temperature ratings of 300°C or 400°C for two hours for fire-rated applications.

For Tube Axial Fans, the website lists aluminium alloy impellers with fixed and variable pitch options, direct-driven or V-belt configurations, sizes from 315 mm to 1600 mm, and airflow up to 130,000 CFM. Final specifications should be confirmed for the chosen model.

Applications of Axial Fans

Industrial Ventilation

Industrial Axial Fans can provide high-volume airflow for manufacturing plants, industrial buildings, workshops, and process areas. They can help remove heat, fumes, and stale air from operating environments.

Smoke and Emergency Ventilation

Fire-rated configurations can be used for emergency smoke extraction where the required temperature and duration requirements are met. They can also be considered for tunnels and basements.

HVAC and Cooling

These fans can support HVAC systems, cooling towers, and air-cooled heat exchangers. Their selection should be based on the required airflow and system resistance.

Why Choose the Right Axial Fan?

Choosing an Axial Fans Manufacturer involves more than comparing airflow numbers. The fan needs to fit the specified operating point, installation area, temperature, pressure, and application environment.

For businesses looking for an Axial Fans Manufacturer in India, engineering support can help identify the proper configuration. Blade pitch, casing, drive arrangement, motor selection, guide vanes, and accessories may be considered during selection.

Engineering and Manufacturing

Design and Configuration

The process begins with understanding airflow, static pressure, temperature, and installation requirements. Fan configuration can then be selected according to the required performance and operating conditions.

Balancing and Testing

Proper balancing is crucial for smooth operation of a rotating system. The impeller and assembled fan may be checked before dispatch for reliable and consistent operation across demanding ventilation environments and projects.

Customized Air Management Solutions

Every project may have different ventilation requirements. Axial fans can therefore be configured according to airflow, pressure, temperature, mounting arrangement, motor requirements, and available installation space.

Accessories such as inlet bells, guide vanes, bird screens, and louvers also can be considered where required.

How to Select the Right Fan?

Check Airflow and Pressure

Begin with the required CFM and static pressure. These values help determine the fan size and configuration needed for the connected ductwork or open ventilation area.

Consider Operating Conditions

Temperature, air quality, noise, installation space, operating hours, and emergency requirements should also be reviewed.

Frequently Asked Questions

What are Axial Fans used for?

They are typically used for standard ventilation, industrial exhaust, cooling, smoke extraction, tunnel ventilation, and HVAC applications.

How do Axial Fans work?

An axial fan moves air parallel to the fan shaft. Rotating blades create the pressure difference required to move air through the fan.

What is the difference between Tube Axial and Vane Axial Fans?

Tube axial fans use a cylindrical casing, while vane axial fans include guide vanes that help control airflow and improve pressure recovery.

Can Axial Fans be custom designed?

Yes. Fan size, blade pitch, drive arrangement, casing, motor, materials, and accessories can be selected according to project requirements.

Learn More

Conclusion

A selected axial fan can support efficient ventilation, cooling, exhaust, and smoke-control requirements. The right configuration should usually match the specified airflow, pressure, temperature, and installation conditions.

For technical consultation, FanAir India Pvt. Ltd. can help examine your application requirements and discuss an axial fan configuration for your project.
